Schedule Work

  • This section provides a list of work centres and components which are going to be worked on.
  • It provides a quick view of the target in hand and approaching or missed due dates.
  • Data on this page is refreshed at every 15 minutes.
  • The Expand or Collapse button on the top right-hand side of the screen allows the user to resize the screen.

Filters

  • By default, work centres of the entire shop floor are listed. Select the required departments from the filter at the right-hand side of the screen.

  • On selection of Department Category filter will be enabled for selection and it will list down all those categories which is associated with the Department selected
  • To view a specific data, enter a job code in the Search filter .
  • To understand the whereabouts, status and work centre wise location of each operations of a single job, use the Search Job Code box. This will list all the assiciated operations and users linked with the job.

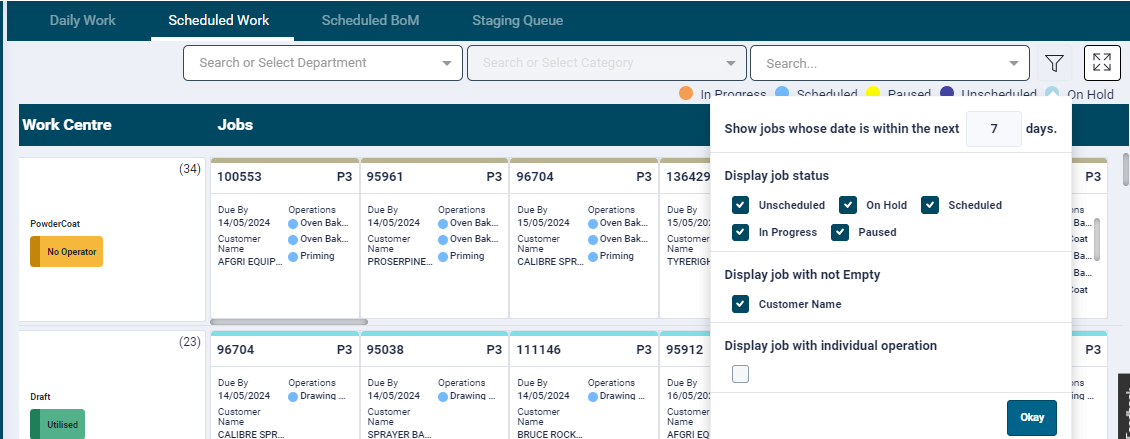

  • The display setup can be accessed from the filter at the right-hand side of the screen.

  • The first option allows filtering the data based on job due date. Specify the number of days in the input fields. By Default, the data for all jobs whose due date is less than current date + 30 days is dislayed.
    • The modified days will get saved as a preference and the data will be displayed accordingly.
  • Display Job Satus: This allows user to setup what columns the user wishes to see based on job status.
  • By default all the available items are selected. Unselect the check box to refine the data.
  • The status legends (In Progress, Scheduled, Paused, Active, On Hold) are provided below the filters.
  • Customer name: Selecting the customer name checkbox in a filter it will show that jobs which consist of Customer name in it.

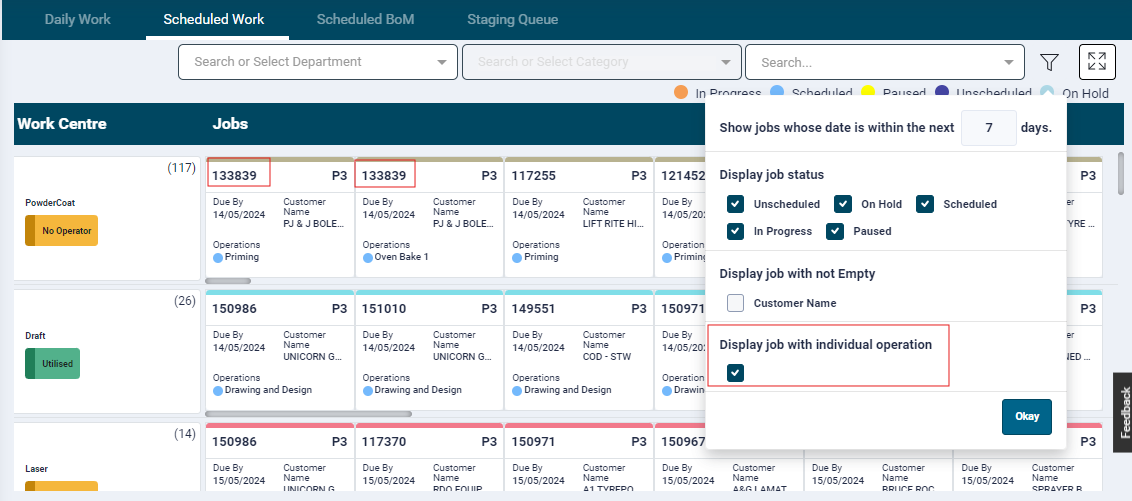

  • Display Job with individual Operation: Selecting the Checkbox will show all Operations of the same job individually and it will show all cards in ascending order according to the due by and priority P1 jobs will show first irrespective of Due by

  • The Expand icon will display the data in full screen.
  • The Collapse icon will reset the screen to normal view.

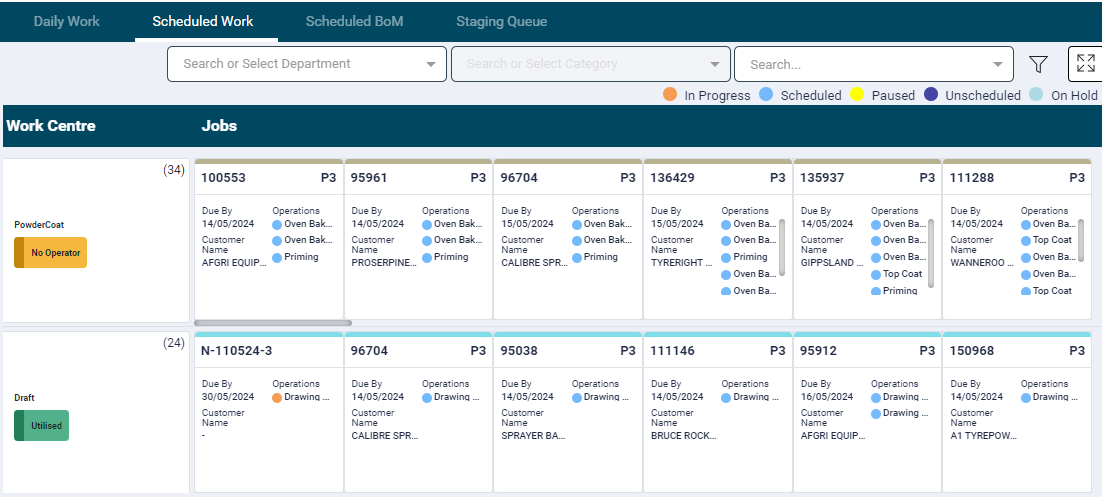

Data Table

  • In the data table, the first column lists the work centre name, it's current status and the assigned operator (if assigned and if the work centre is not in a downtime status)
  • The next column lists all the jobs in progress. The card would display the job code, component name, operation and the due date.

Work In Progress Details

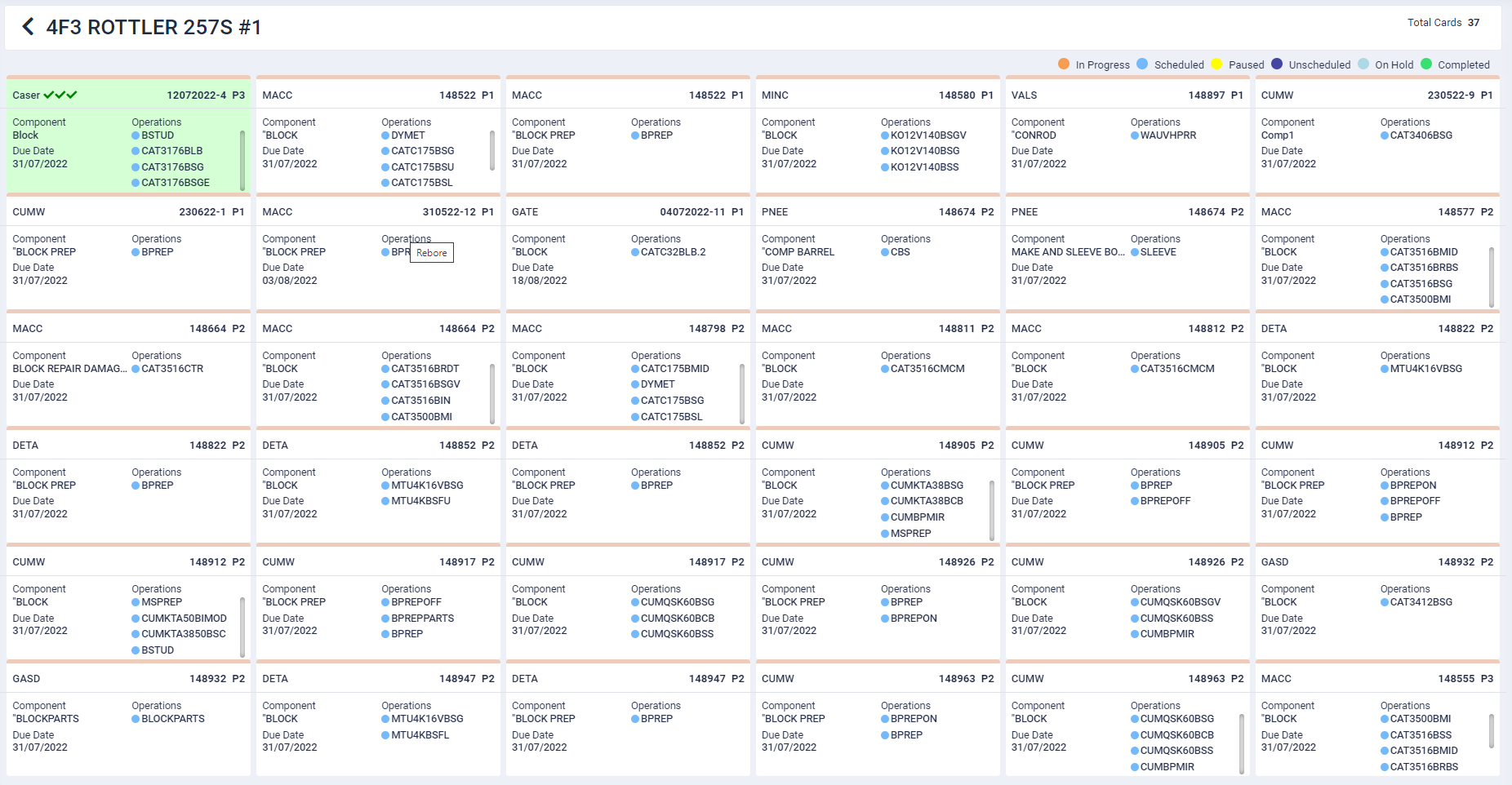

Clicking on the work centre name will open a details page, displaying the job cards of all the components assigned to the work centre.

The cards would display Component name or Customer Name as the case may be.
