Gateway Installation - White
1. Record Area Name
The name of the area will be used when setting up your gateway as a reference. For example if the gateway will be installed in Engineering that can be used to name the gateway so it is easily identified when checking gateway statuses in the future.

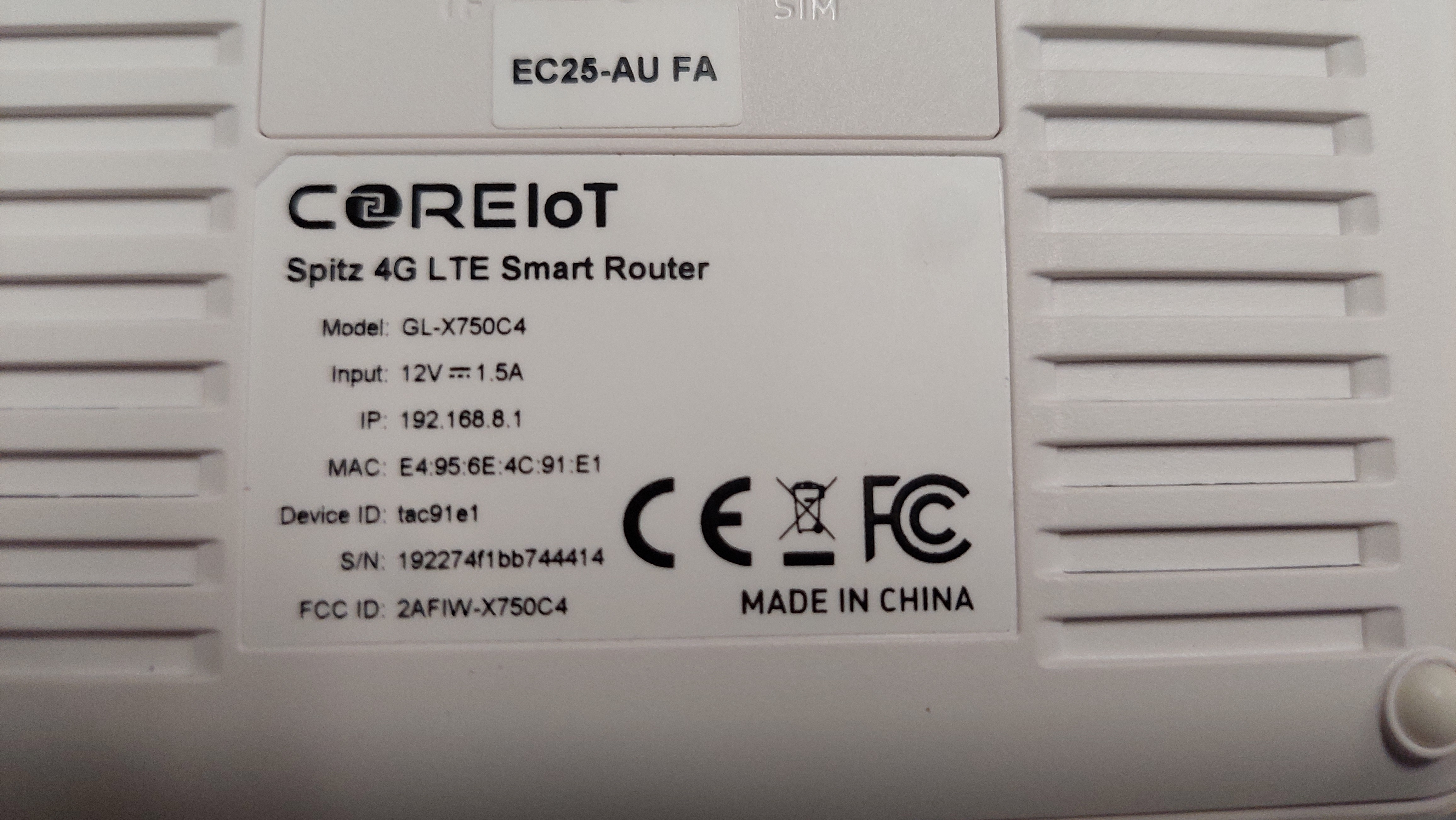

2. Record Gateway MAC Address
The MAC address of the gateway can be found on the base of the unit, identified by ''MAC:''.
3. Installation
Whats included
-
1x Gateway
-
2x Antennas
-
1x Power Adapter
-
1x Mounting Plate

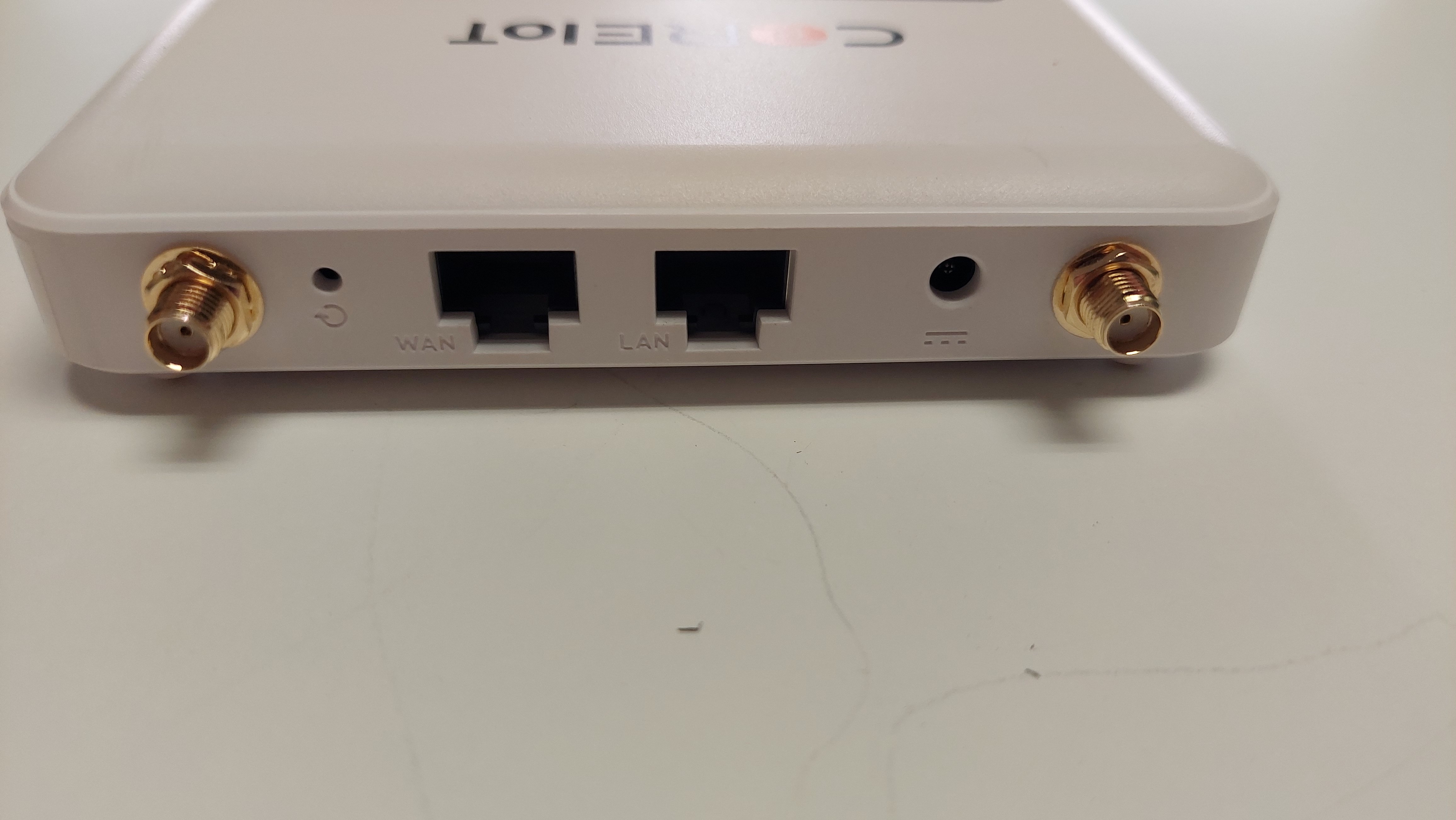

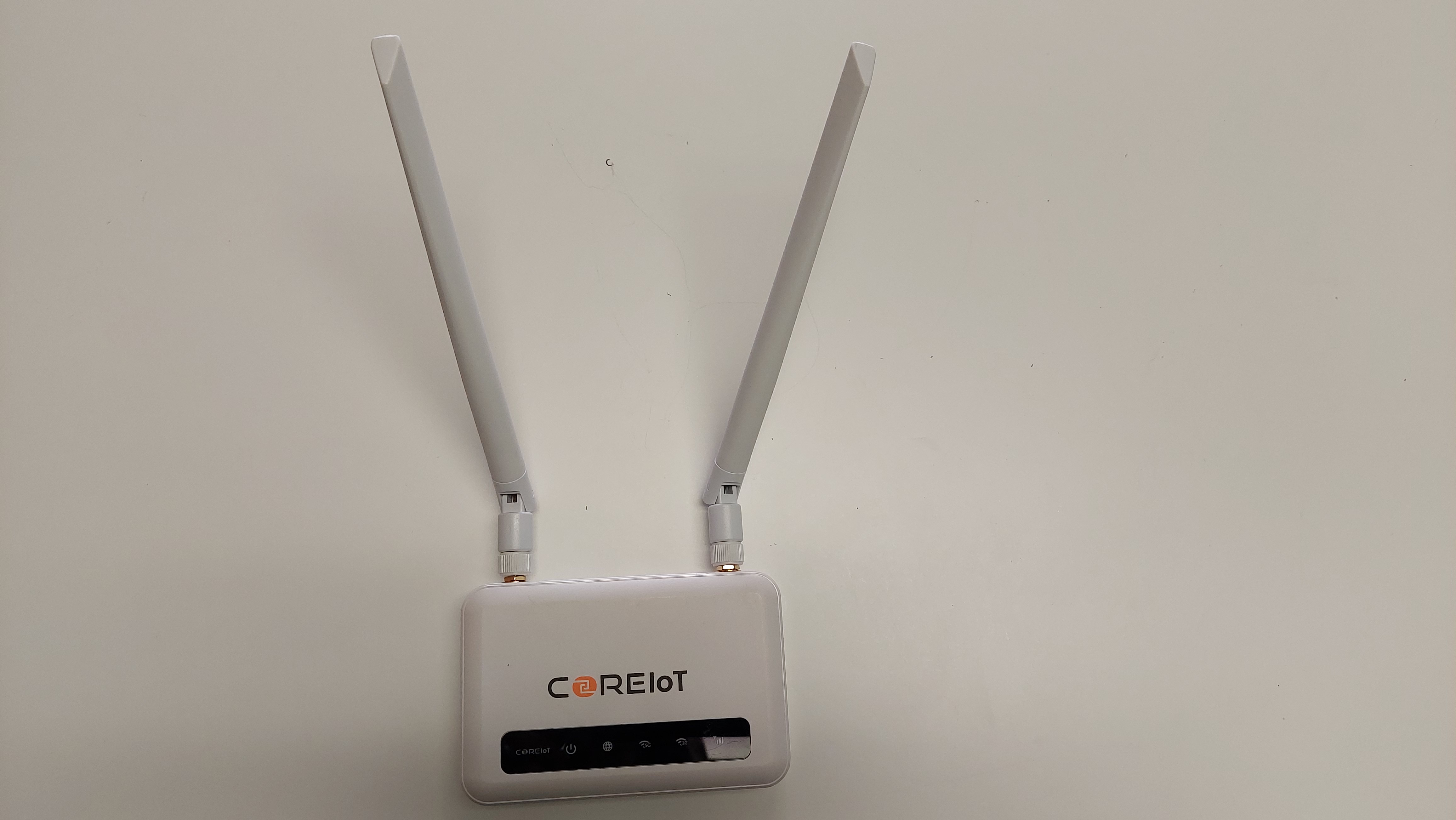

Antenna Installation
- Screw in each antenna.

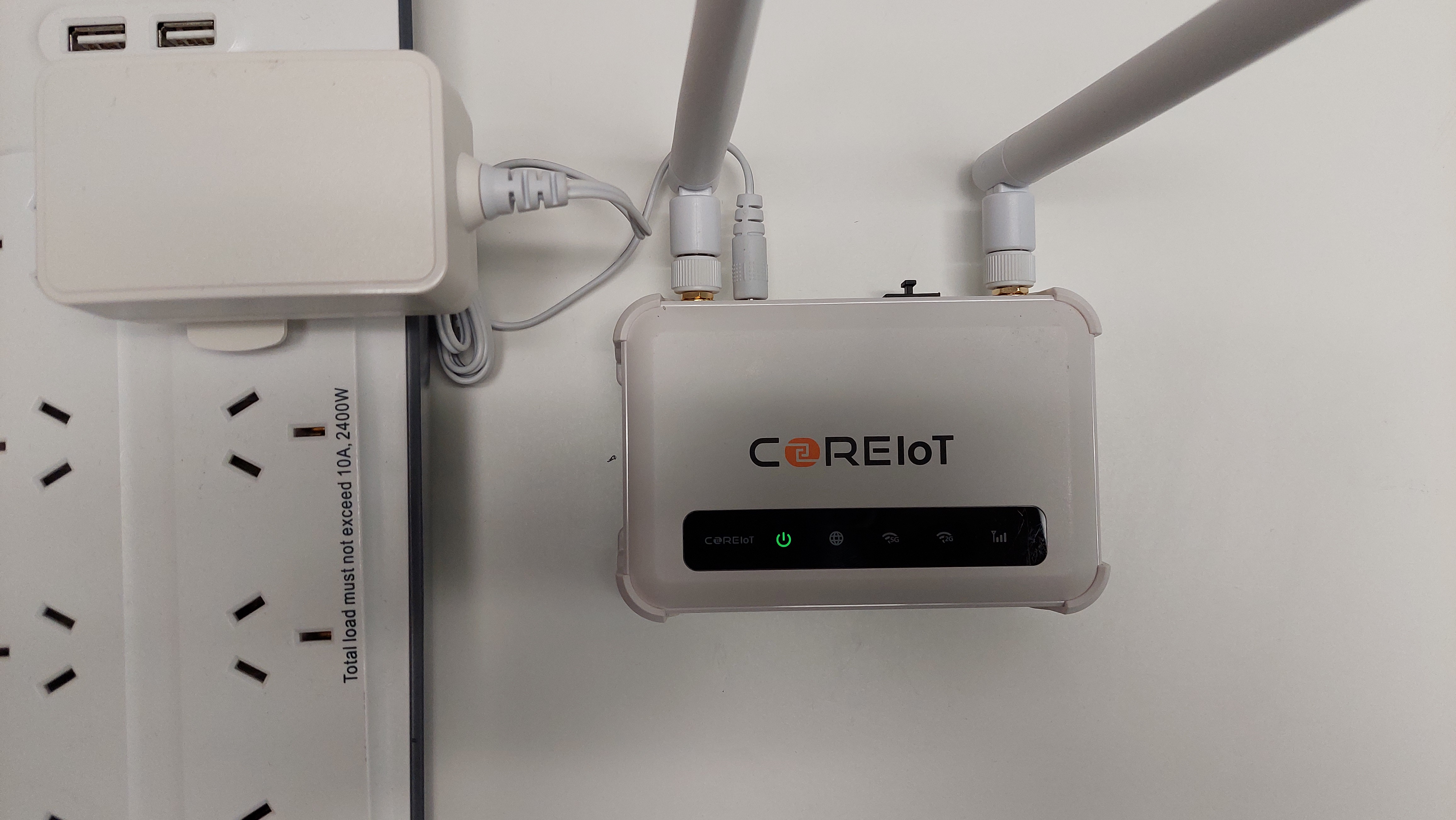

Power
Our gateway should be powered with the included power adapter. It will safely convert mains power to the required DC voltage.

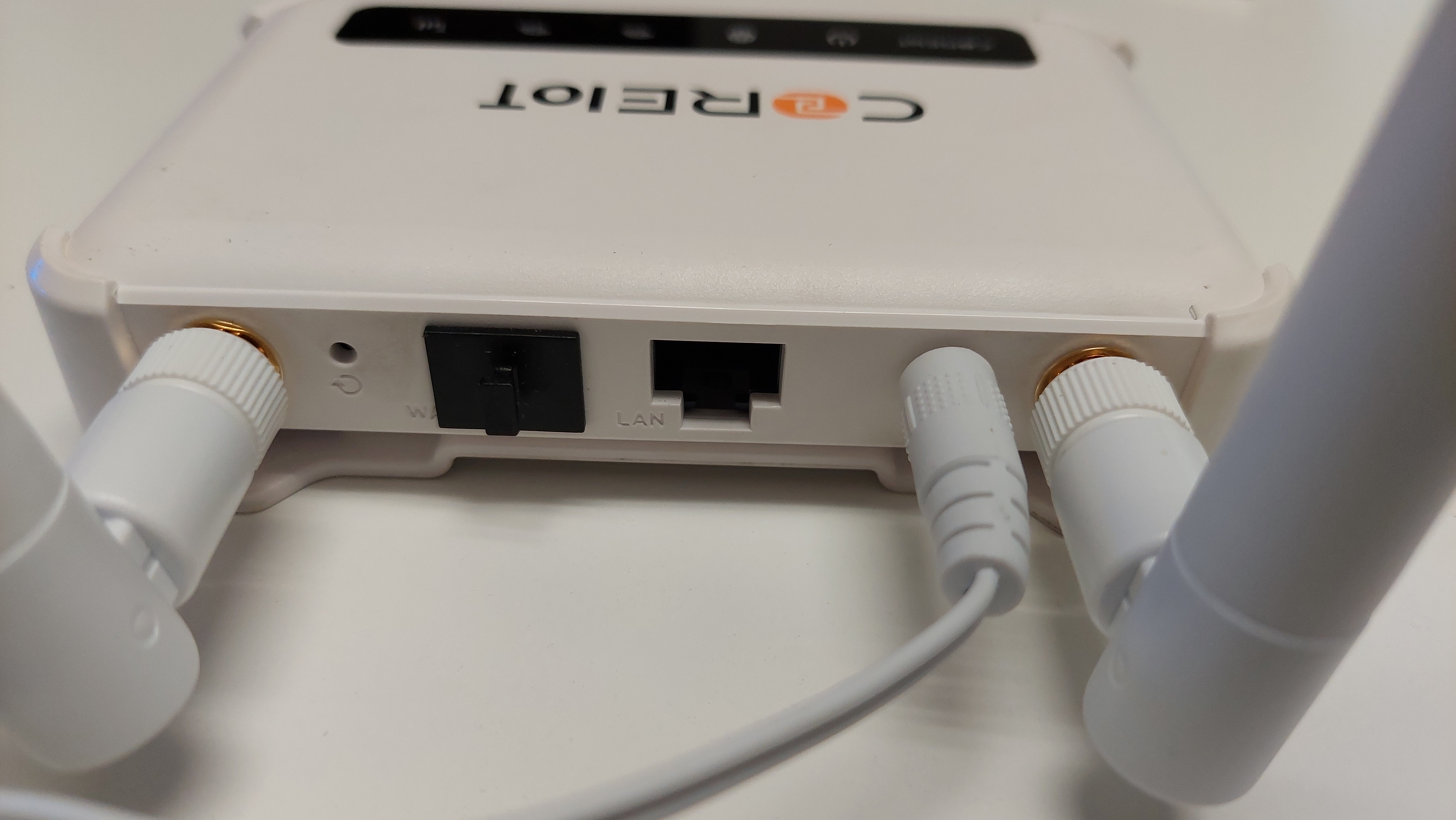

- Plug the barrel plug into the gateway.
- Connect other end to mains.

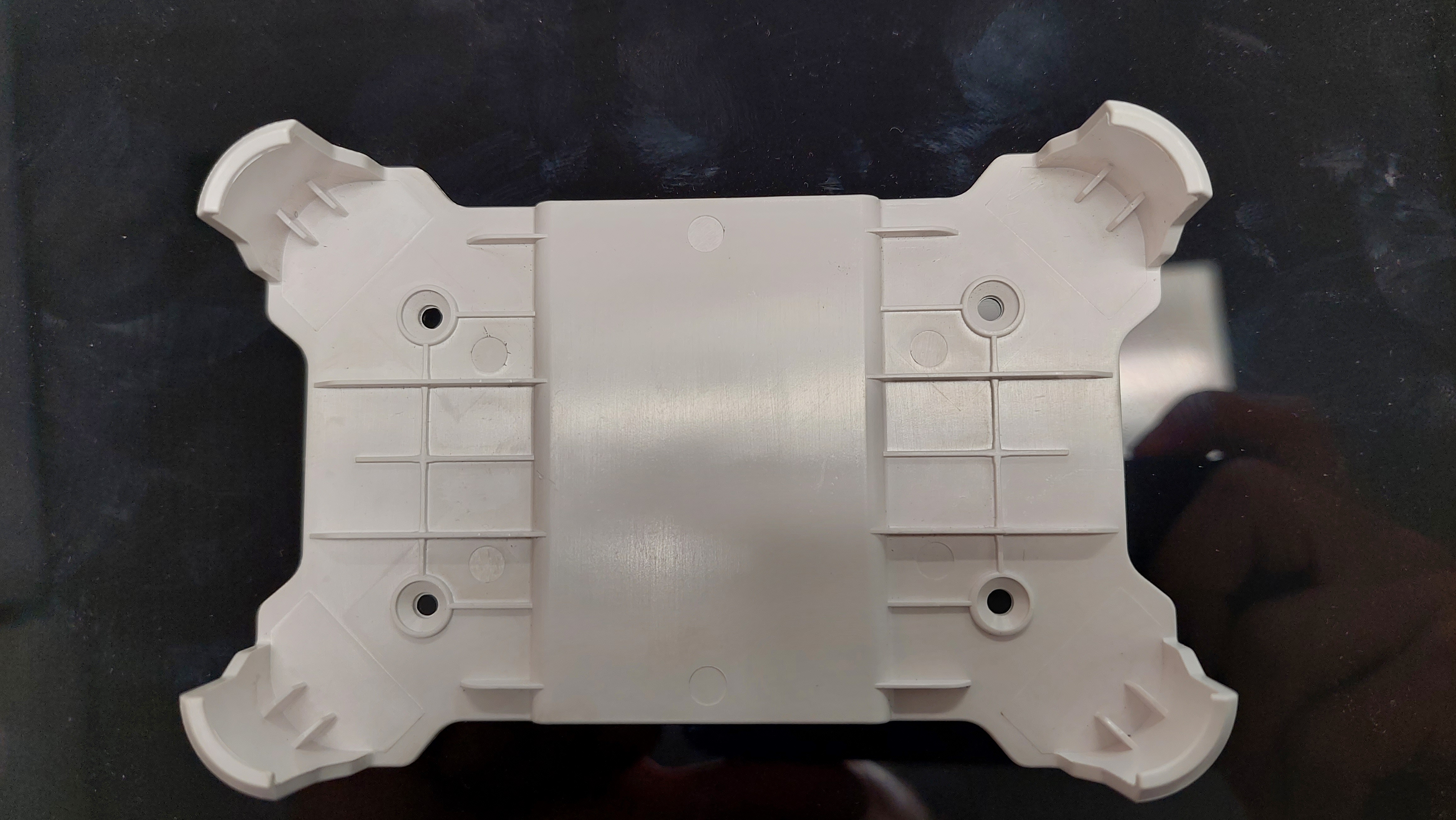

Mounting
A mounting plate if provided with your gateway. The mounting plate can be zip tied to a pole or mounted onto a wall. If mounting onto a wall used a common recommended method to mount an object onto it.
